This series of non-core PDC bits is designed for coal mining, geological exploration, gasdrainage, and tunneling. They provide efficient drilling and stable borehole quality across a wide range of formations.
Concave Bit
Applicable Formations
F ≤ 10
Size Range (mm)
Φ48 – Φ153

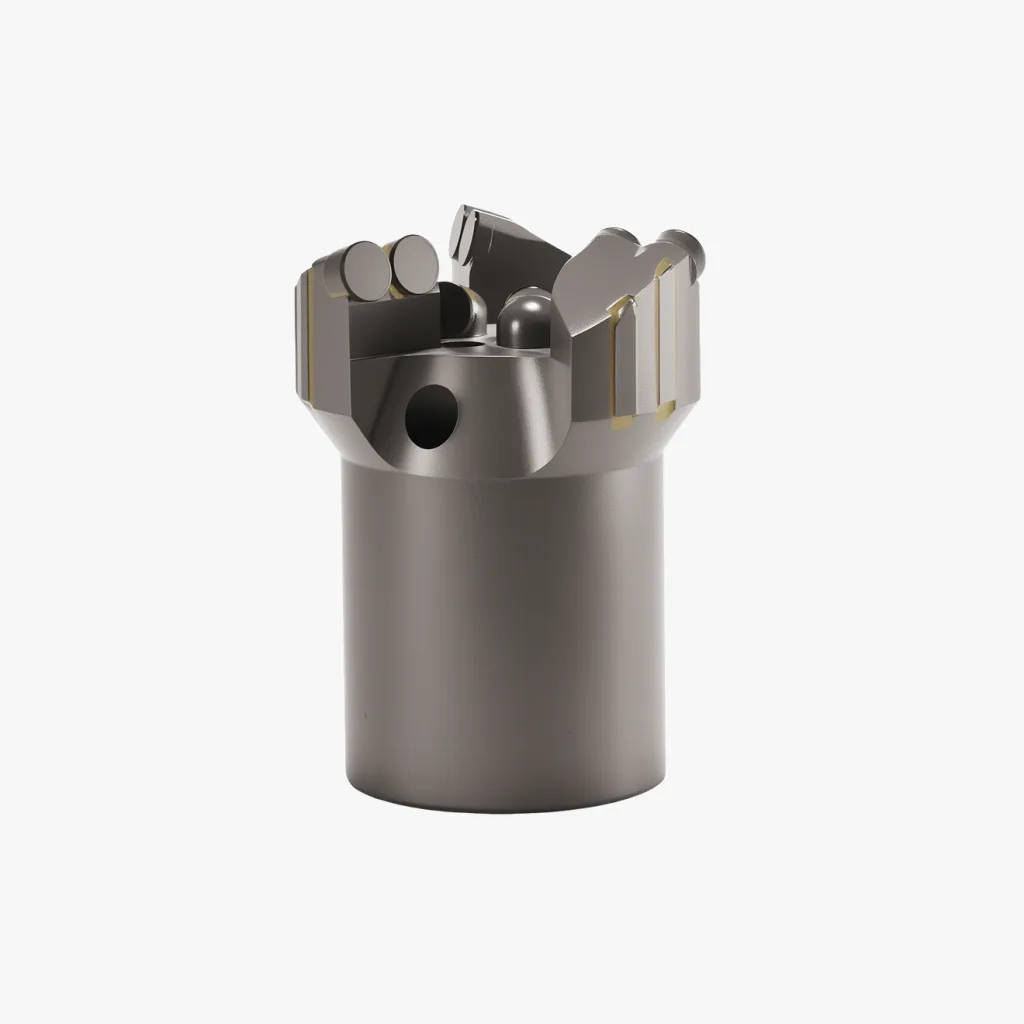

Three-Wing Flat
Five-Wing Flat

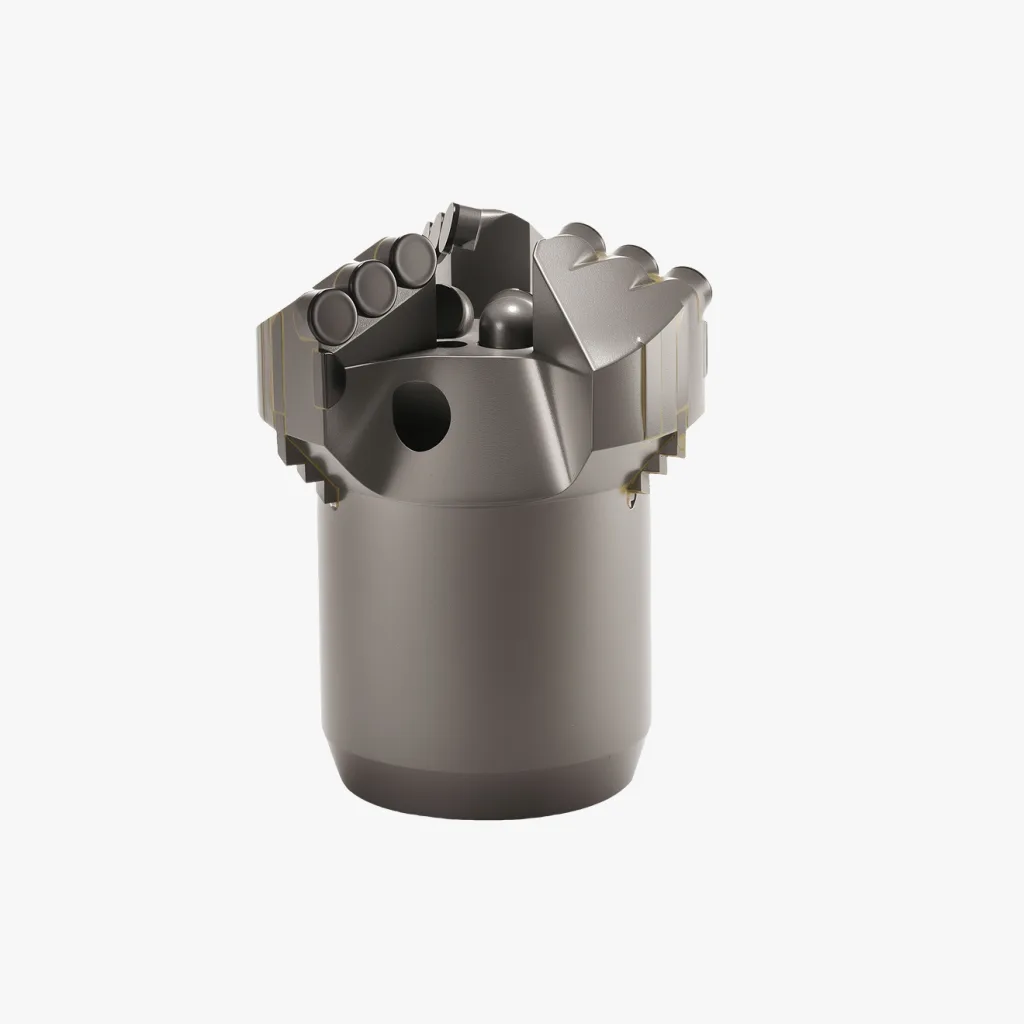

Four-Wing Step

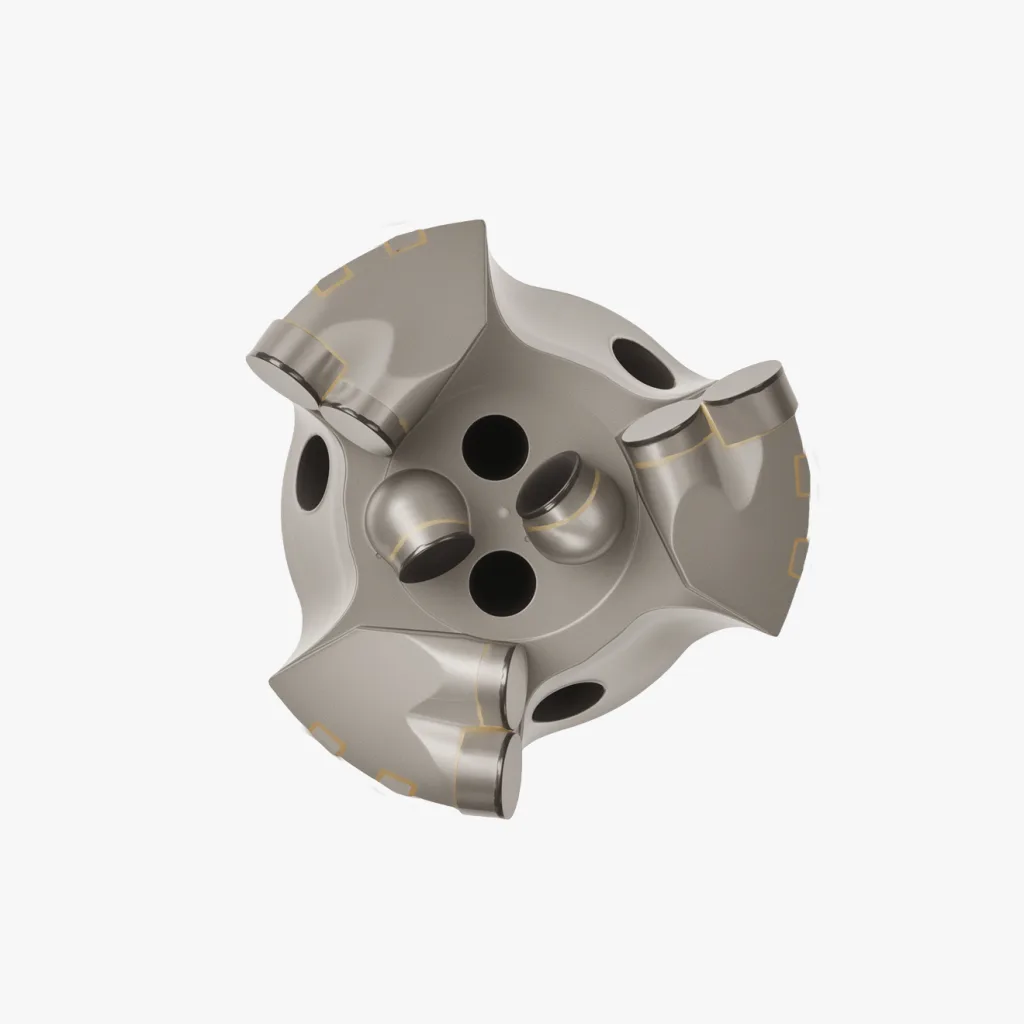

Three-Wing Flat
ArcBlade Bit
Steel body offers faster drilling and better chip evacuation in medium-soft formations.
Applicable Formations
8 < F ≤ 12
Size Range (mm)
Φ75 – Φ311

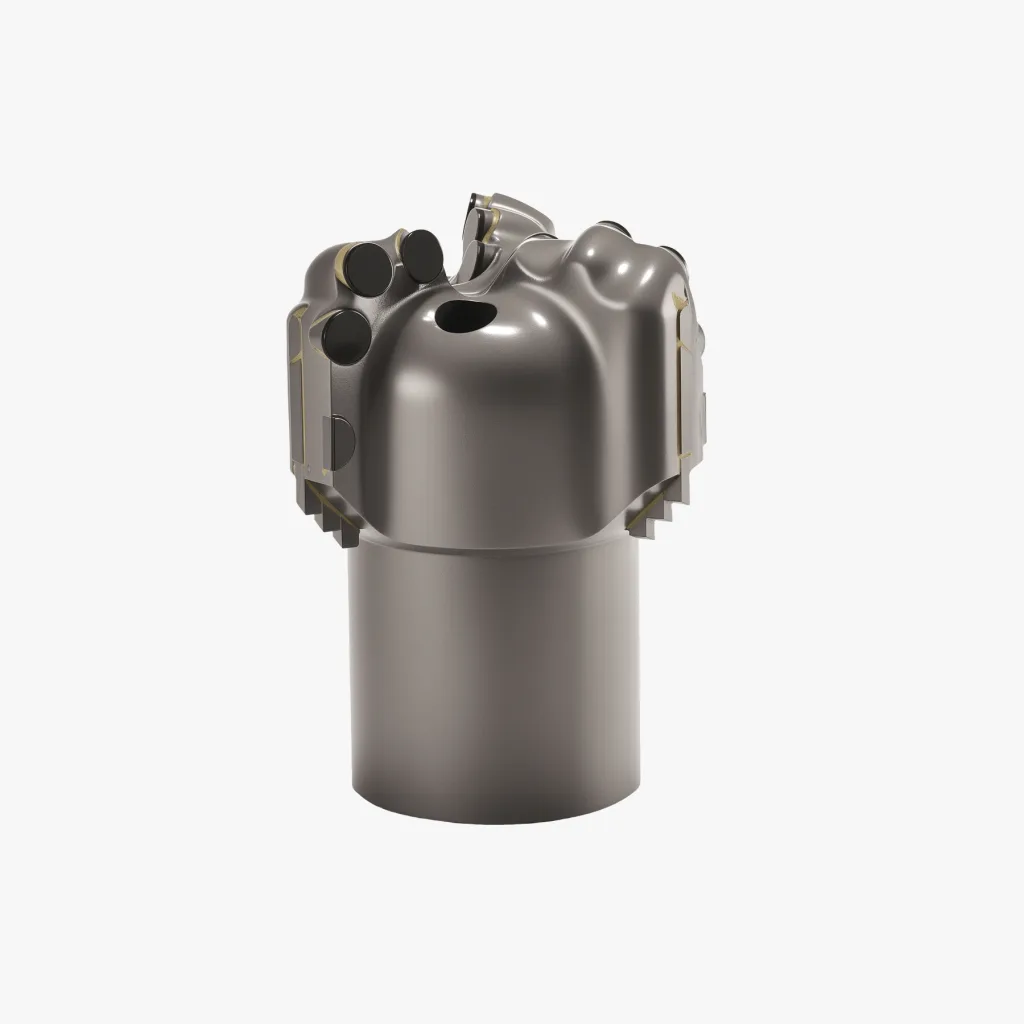

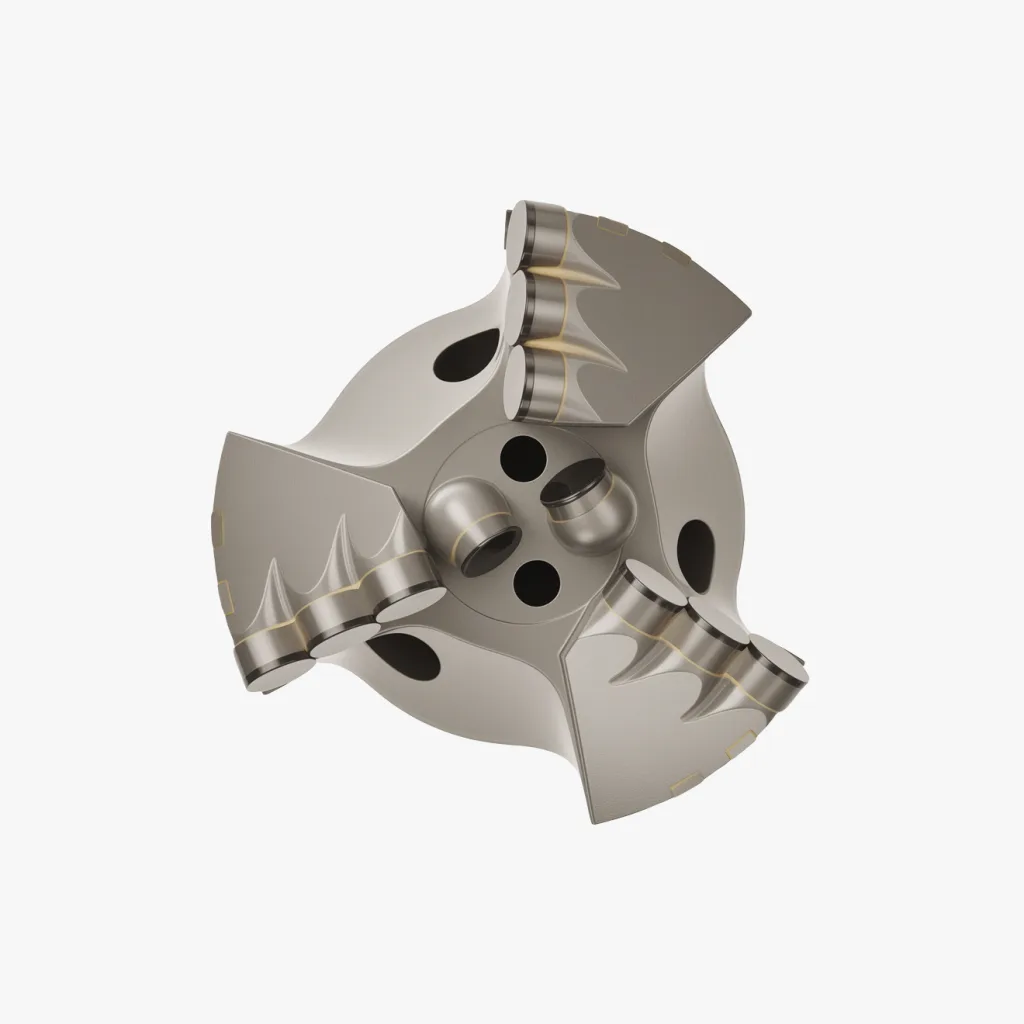

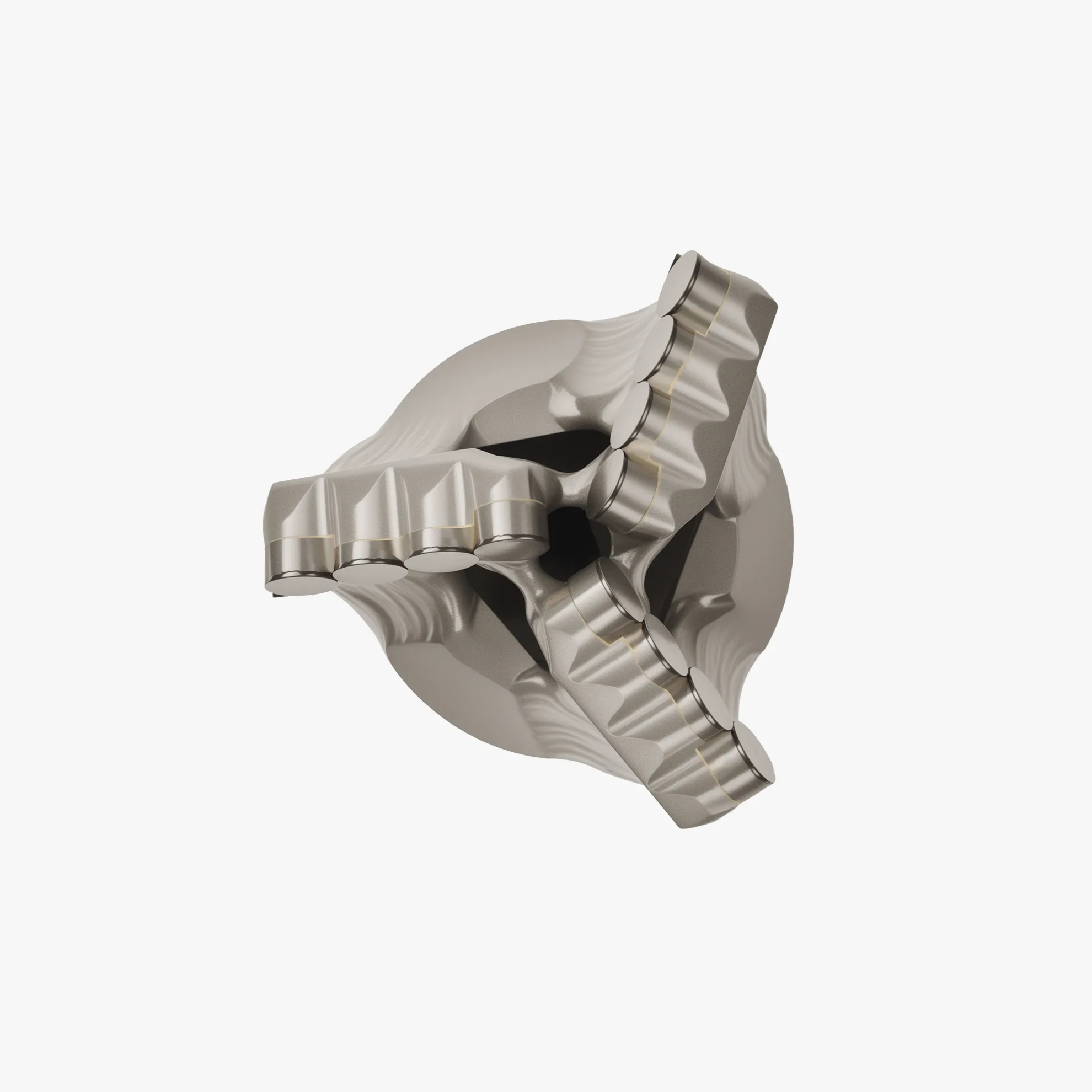

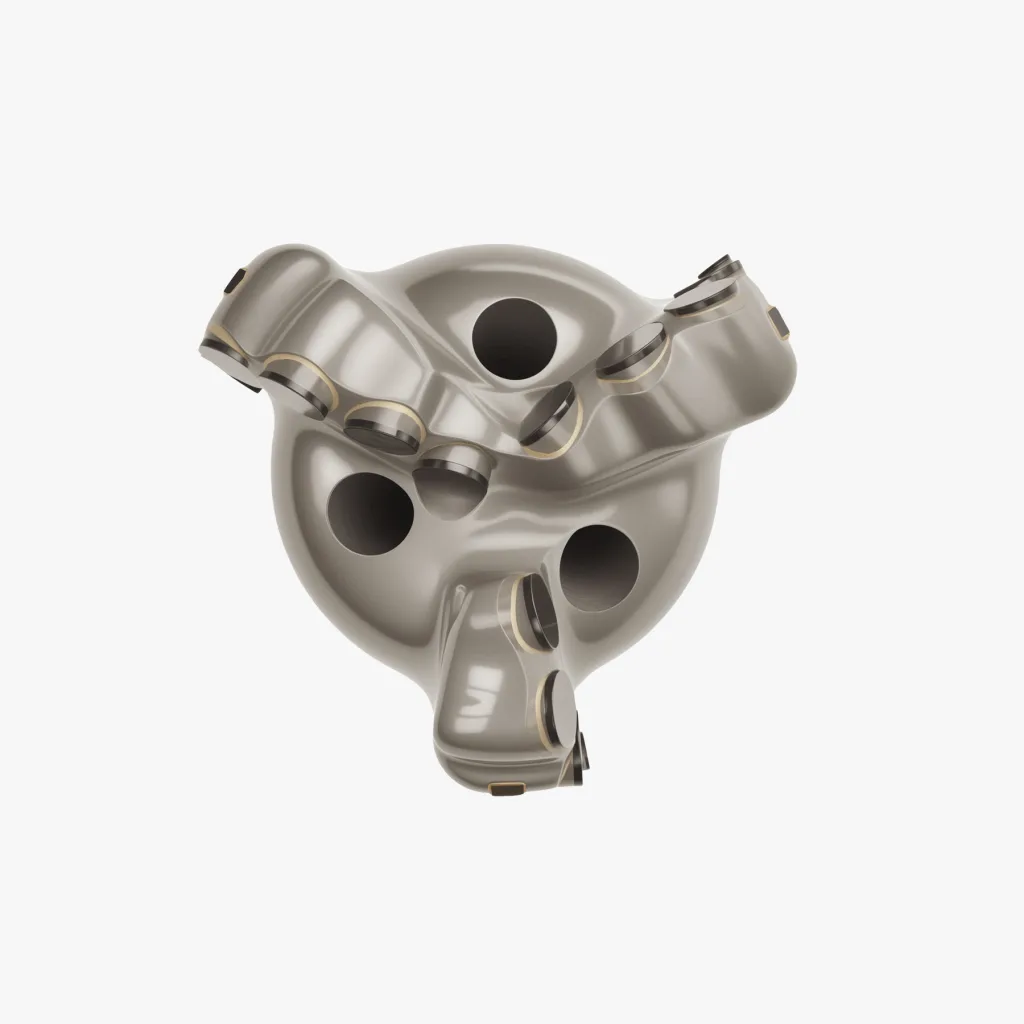

Three Wing ArcBlade

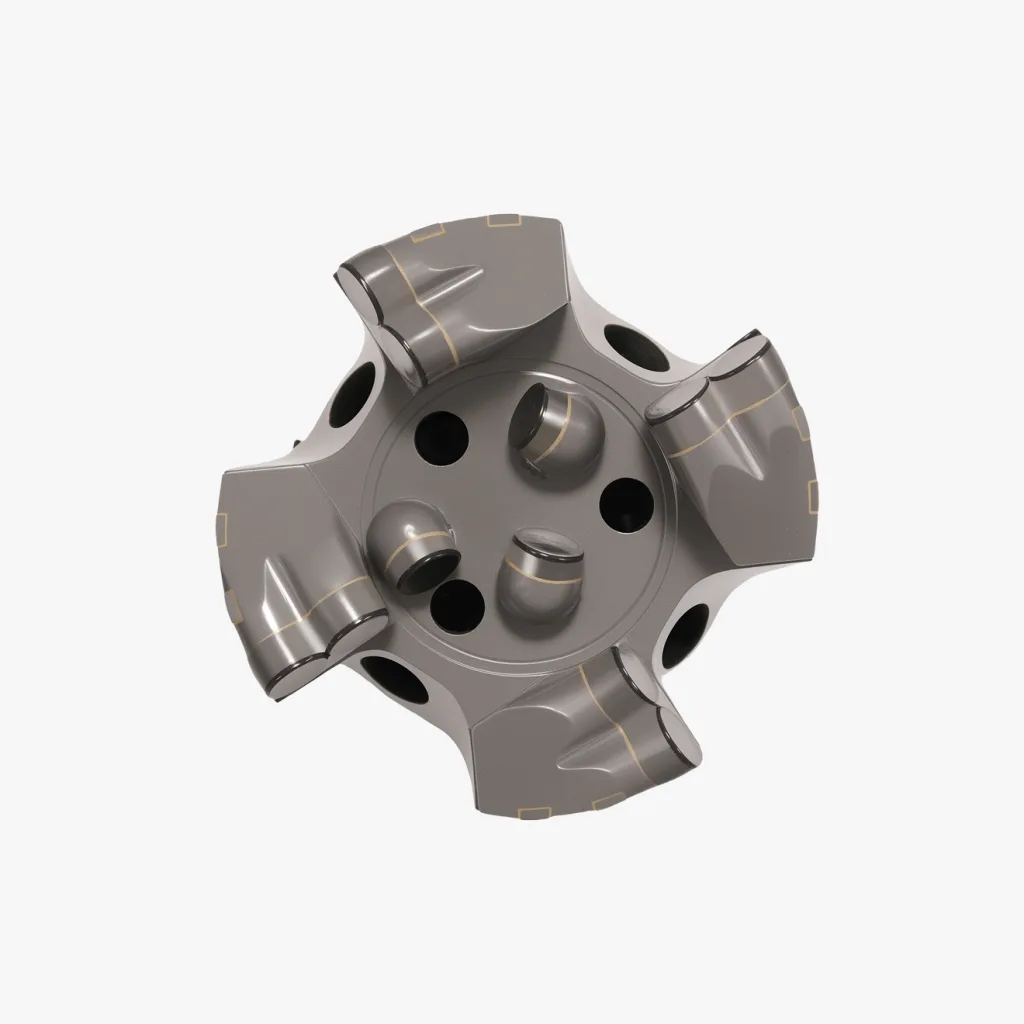

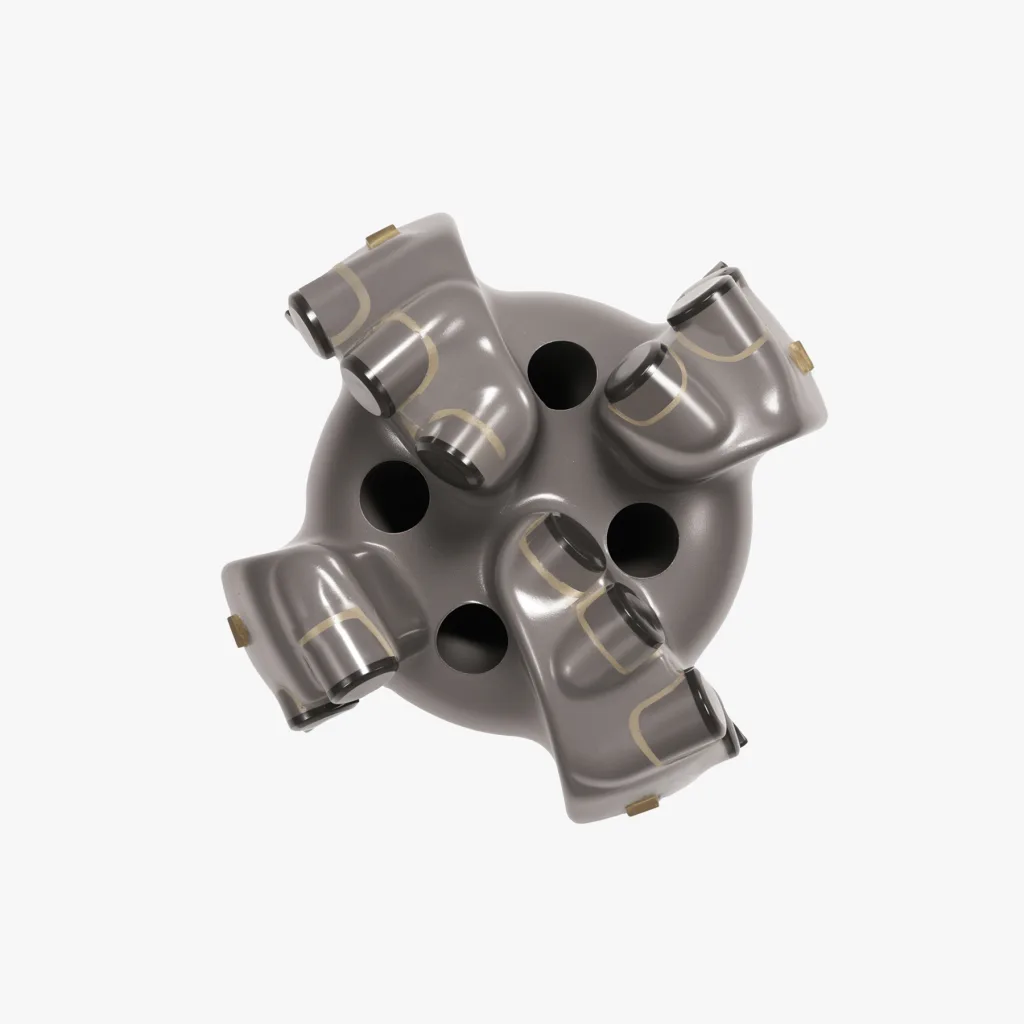

Four Wing ArcBlade
Multi-Wing Flat-Top Bit
Applicable Formations
8 < F ≤ 12
Size Range (mm)
Φ56–Φ120

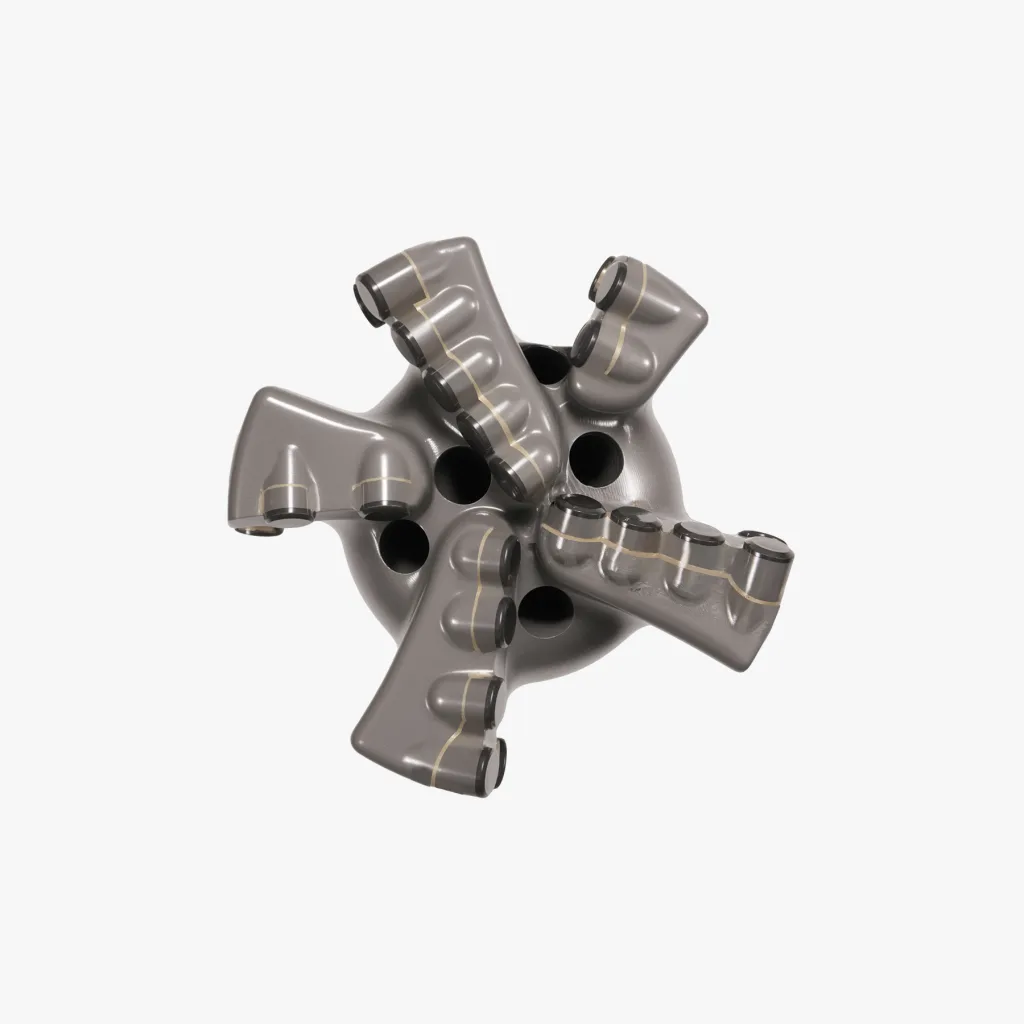

Five Wing Flat-Top Bit

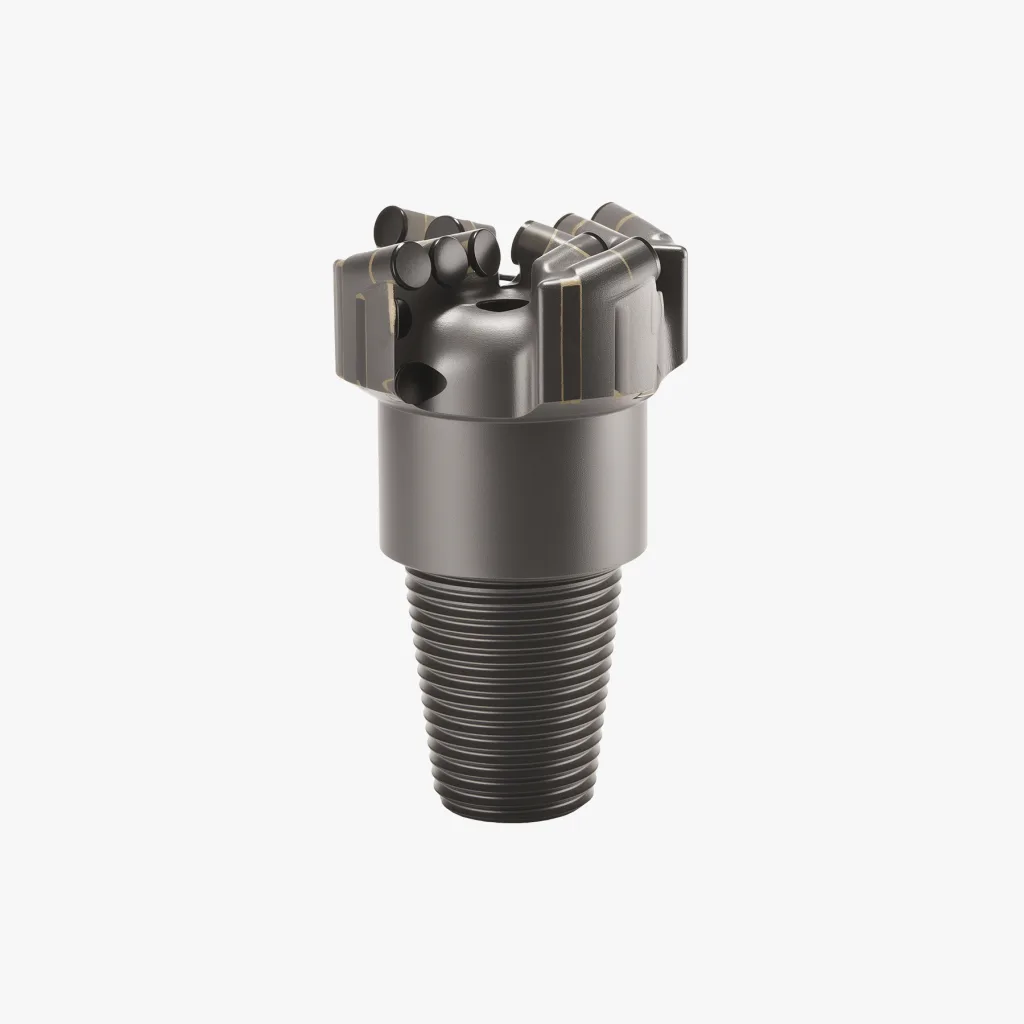

Four Wing Flat-Top Bit

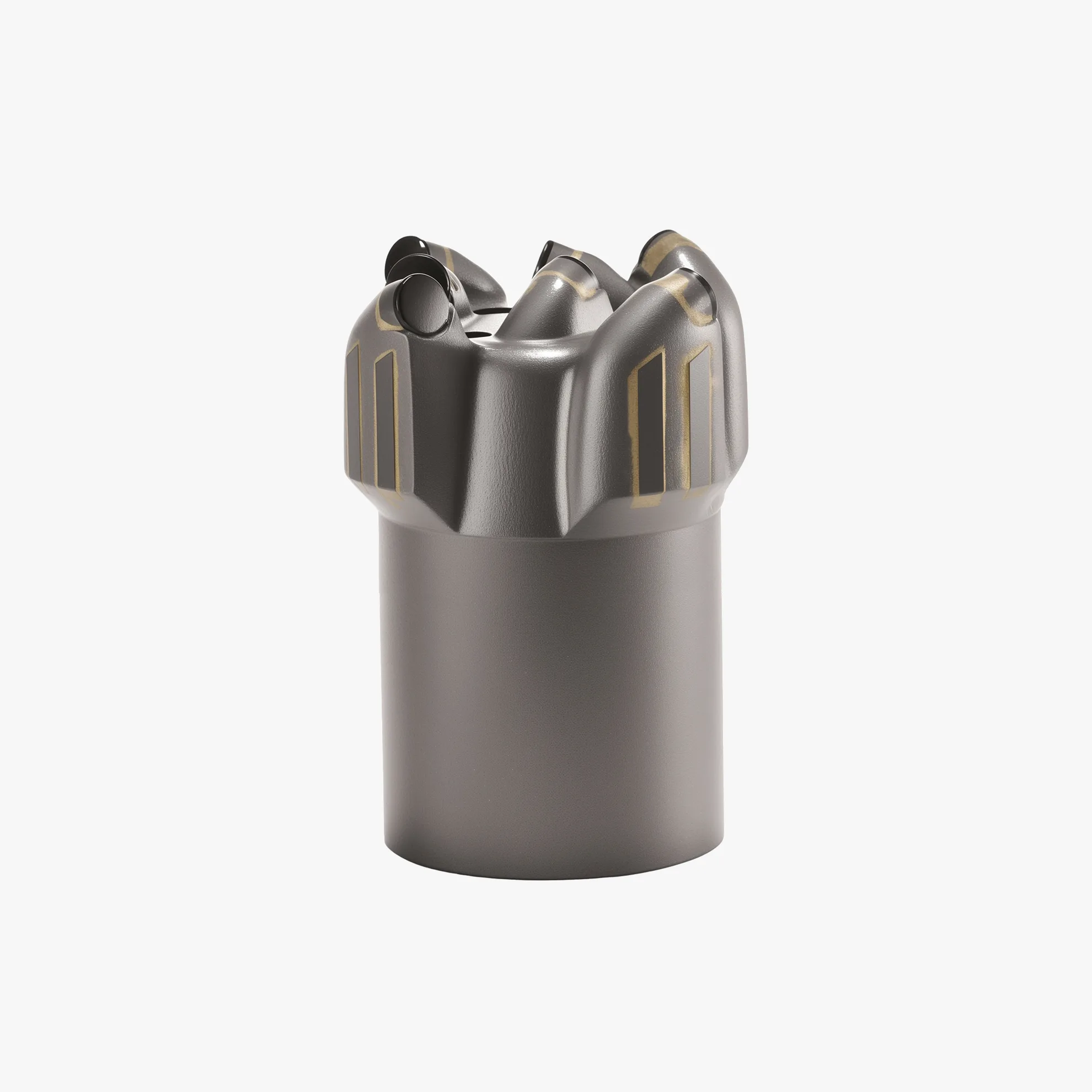

Flat-Top Bit
Arc-shaped crown with carbide pillar structure provides excellent stability and guidance by minimizing bit oscillation during operation.
Alternating rake and orientation interleave cutting paths to reduce torque fluctuation and deviation.
Applicable Formations
Size Range (mm)

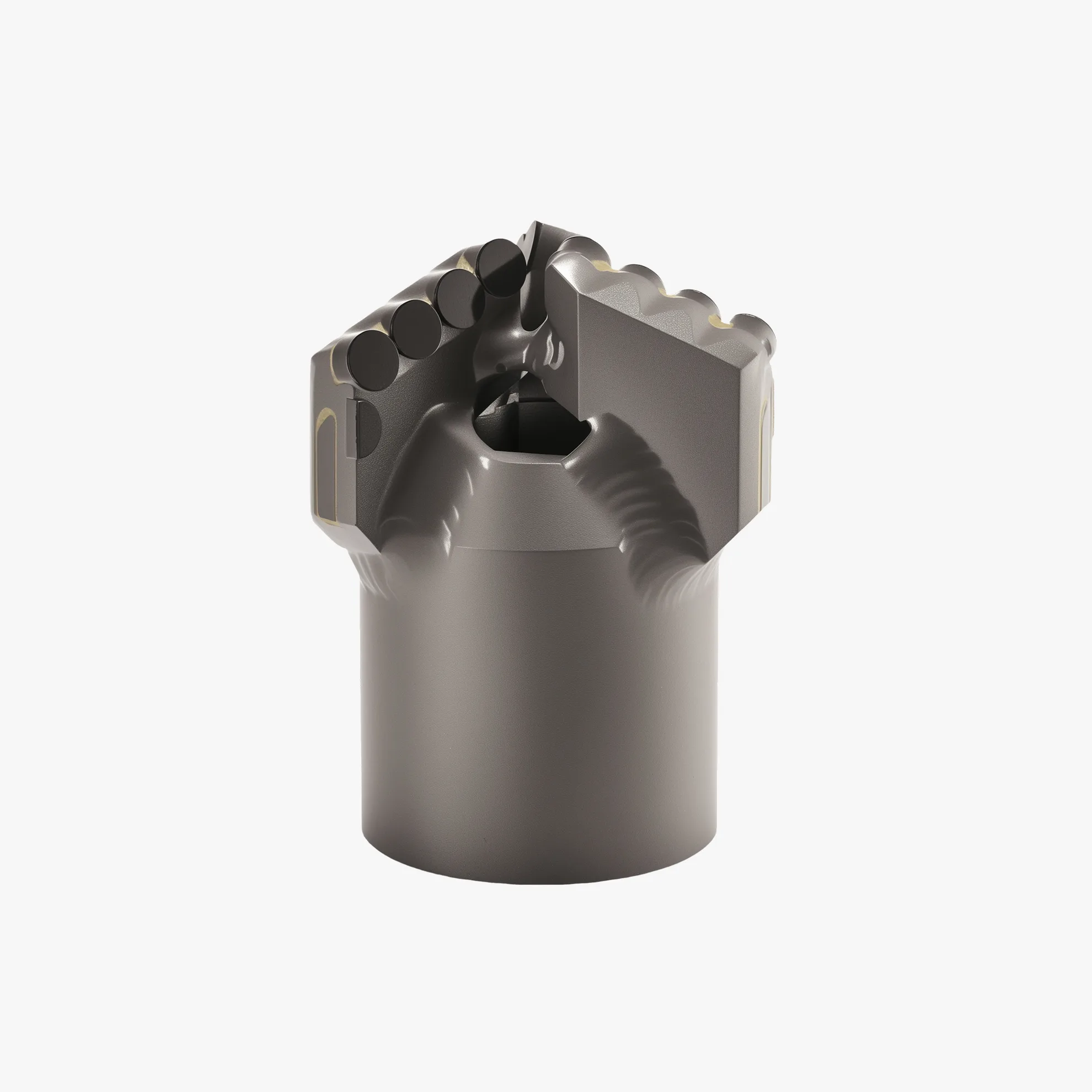

Drag Bit
The drag-type PDC bit uses conical or step blade geometry for sharp cutting, fast ROP, and smooth chip evacuation in soft to moderately hard formations.
Conical blade ensures sharp cutting teeth and stable drilling perfor mance.
Applicable Formations
Size Range (mm)
Industry Experience
Annual Production
Customized Solutions
Factory Footprint (sq.ft)
JINGWEI maintains in-house control over the entire production chain, ensures consistent quality and the agility to customize solutions, helping customers optimize performance and reduce lifecycle costs.
